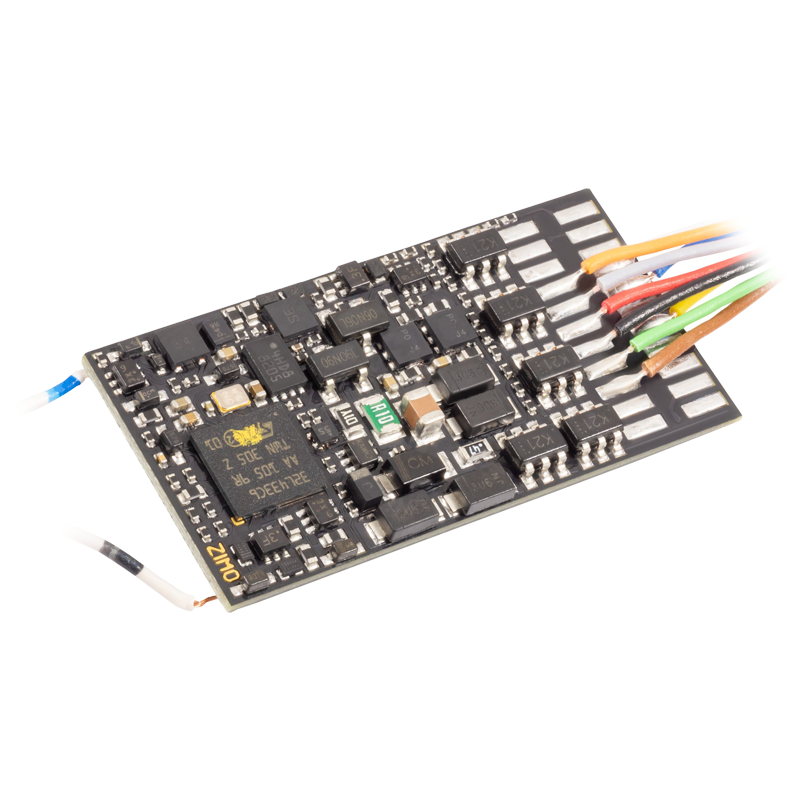

The MN Non-Sound decoder

ZIMO non-sound decoders correspond technologically to MS sound decoders. The identical microcontrollers and largely the same components for the power electronics (motor output stages, etc.) are installed in both product classes, and of course also the software is (further) developed together to a large extent. These similarities result in, among other things, the same driving behaviour, the same mapping, the same (planned) script capabilities and a similar project organisation, whereby there are sound projects for sound decoders on the one hand and projects (without sound) for non-sound decoders on the other, which contain both configuration data (i.e. essentially CV lists) and GUI data.

At a Glance :

Dimensions (mm)	30 x 15 x 2.2
Connections Wires and/or standardized interfaces	11 wires
Total current (continuous): motor+sound+FOs(peak)	1.2 A(2.5 A)
Motor current (continuous)(peak)	1.2 A(2.5 A)
Current on Function OutputsTotal of the FOs	0.8 A
number and type Function Outputs 2 x headlights(+ logic-level outputs)	10 4 with wires 6 on s.pads (+2 logic-level)
Servo control wires (complete witch 5 V supply)	2 alternate use of logic-level (NO, external 5 V)
SUSI - connection alternatively SUSI, I²C, sound loading	yes alternate use of logic-level on s.pads
Switch Inputs for cam sensors, Reed switches, i.a.	1 on s.pad +2 alternate use of logic-level
Energy Storage connection 15 V - capacitors DIRECTLY to the decoder	yes with wires
