|Fullrange HiFi Speaker - FRS 5|
Linear frequency response between 250 and 20000 Hz. Ideal speaker for the model field.
- Moisturized cone
- Metal masket
Mounting Hole: (ctr-ctr) 2 7/16"
Height: 1 5/16"
Rated power 5 W
Maximum power 8 W
Nominal impedance Z 8 Ohm
Frequency response 150–20000 Hz
Mean sound pressure level 84 dB (1 W/1 m)

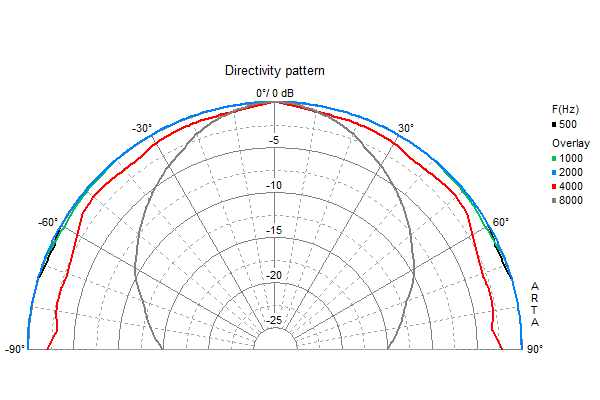

Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−2 mm
Resonance frequency fs 270 Hz
Magnetic induction 0,95 T
Magnetic flux 105 µWb
Height of front pole-plate 2.5 mm
Voice coil diameter 14 mm
Height of winding 3.7 mm
Cutout diameter 46 mm
Net weight 0,126 kg
D.C. resistance Rdc 7,2 Ohm
Mechanical Q factor Qms 3.19
Electrical Q factor Qes 1.81
Total Q factor Qts 1.15
Equivalent volume Vas 0.2 l
Effective piston area Sd 12 cm²
Dynamically moved mass Mms 0.5 g
Force factor Bxl 1.6 T m
Inductance of the voice coil L 0.2 mH
Temperature range −13 ... 158 °F
This speaker is made in Germany by the German manufacturer Visaton, a company that I personally know for more than 30 years. I build my first studio speakers with speakers from Visaton and they lasted for 15 years until I sold them - and they probably perform still today. So it is no surprise, when entering into the garden railroad sounds, I found Visaton again - and they are great!
